M/B Form Factor
ATX (12"x9.6"), Micro-ATX (9.6"x9.6"), Mini-ITX (6.7"x6.7")
Drive bays
HDD Rack: 2 x 3.5" Mechanical HDDs OR 2 x 2.5" Solid-State SSDsHDD Bracket: 2 x 2.5" Dedicated SSD positions
Max CPU cooler height
Up to 150 mm
Max VGA card length
Up to 300 mm
Cooling System
Includes 1 x 120 mm standard black exhaust fan pre-mounted at the rear (1000 RPM, 16 dBA). (Note: Regional "SE Asia Version" bundles can include 2 x Blue LED fans). Front: 3 x 120 mm or 2 x 140 mm or 2 x 200 mm fans.Top: 2 x 120 mm or 2 x 140 mm fans.Rear: 1 x 120 mm fan. Liquid Cooling Radiator Support:Front: 120 / 240 / 280 / 360 mm liquid AIO water-cooling radiator loops.Top: 120 / 240 mm liquid AIO radiator kits.Rear: 120 mm radiator loops.
Material of Chassis
Durable SPCC Steel Framework + ABS Plastic Front Mesh + 4mm Tempered Glass Side Panel
I/O panel

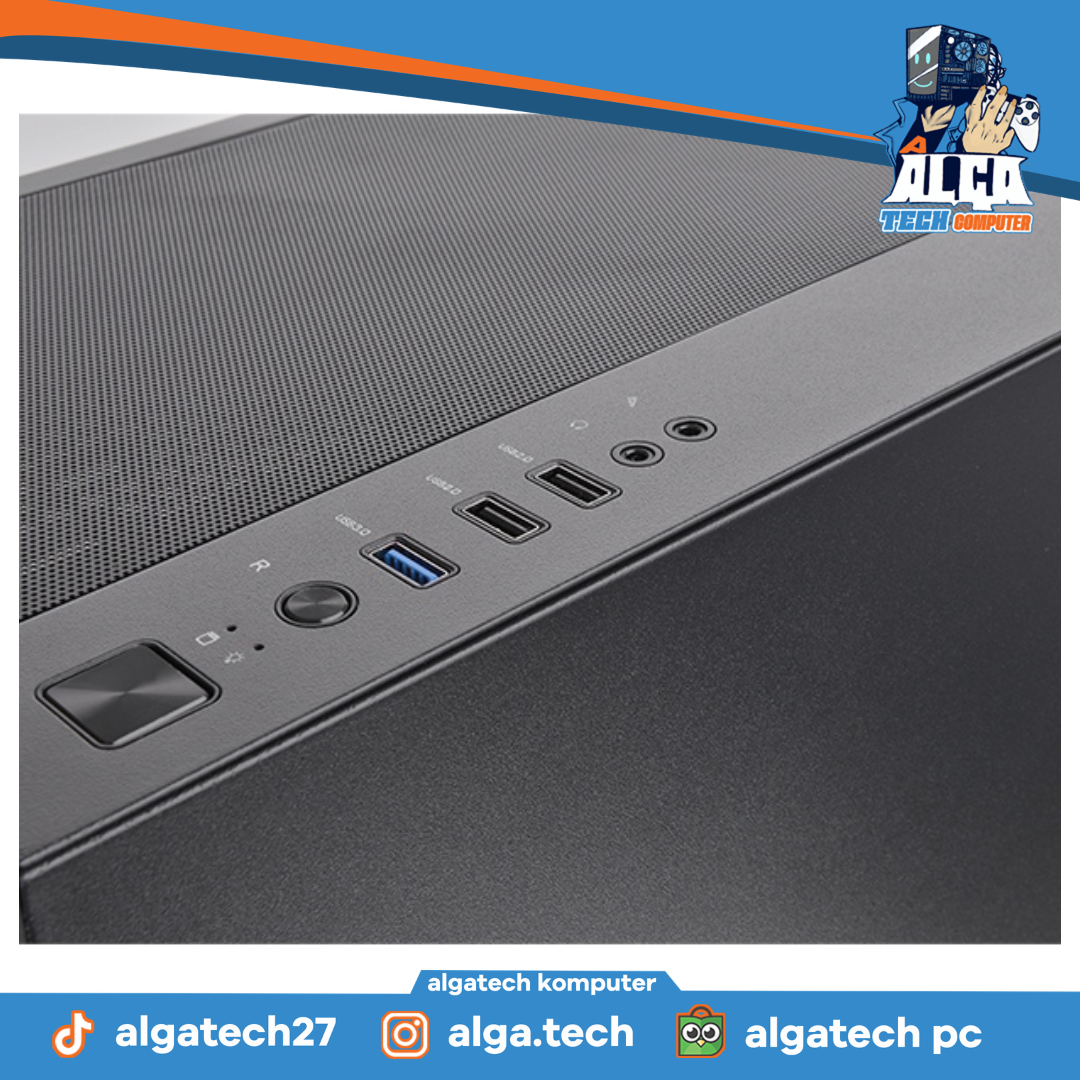

1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, Power Button, Reset Button
Product Size
419 × 210 × 480 mm
Packing Size
419 x 210 x 480 mm
NW
6.12 kg (13.49 lbs)
GW
~7.25 kg (Total estimated weight packaged inside its retail box)
