M/B Form Factor

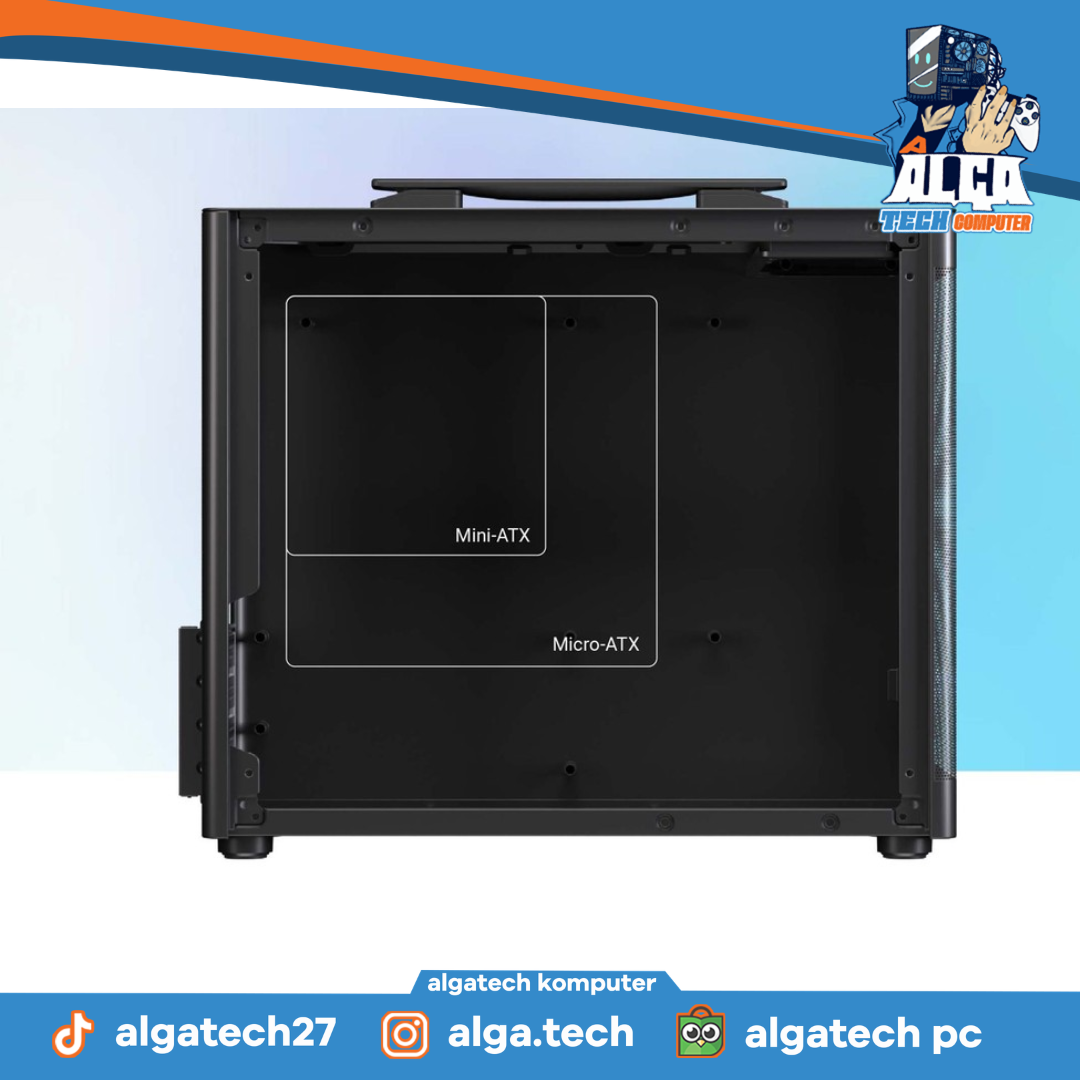

Micro-ATX (M-ATX) / Mini-ITX
Drive bays
1 x 3.5" HDD1 x 2.5" SSD
Max CPU cooler height
Up to 140 mm
Max VGA card length
Up to 280 mm (Maximum height limit: 135 mm)
Cooling System
(Supports up to 4 or 5 fans depending on layout):Top: 2 x 120 mm fans.Bottom: 2 x 120 mm fans (occupies the 2.5" / 3.5" storage drive space).Rear: 1 x 80 mm or 1 x 90 mm slim exhaust fan
Material of Chassis
Premium 0.7mm SPCC Steel + ABS Plastic + High-Density Mesh Panel
I/O panel
1 x USB 3.0, 1 x 3.5mm Combo HD Audio Jack, Power Button
Product Size
350 × 168 × 302 mm (including 12mm feet)
Packing Size
350 x 168 x 302 mm
NW
2.55 kg
GW
~3.50 kg (Estimated package weight with standard retail box packing materials)
