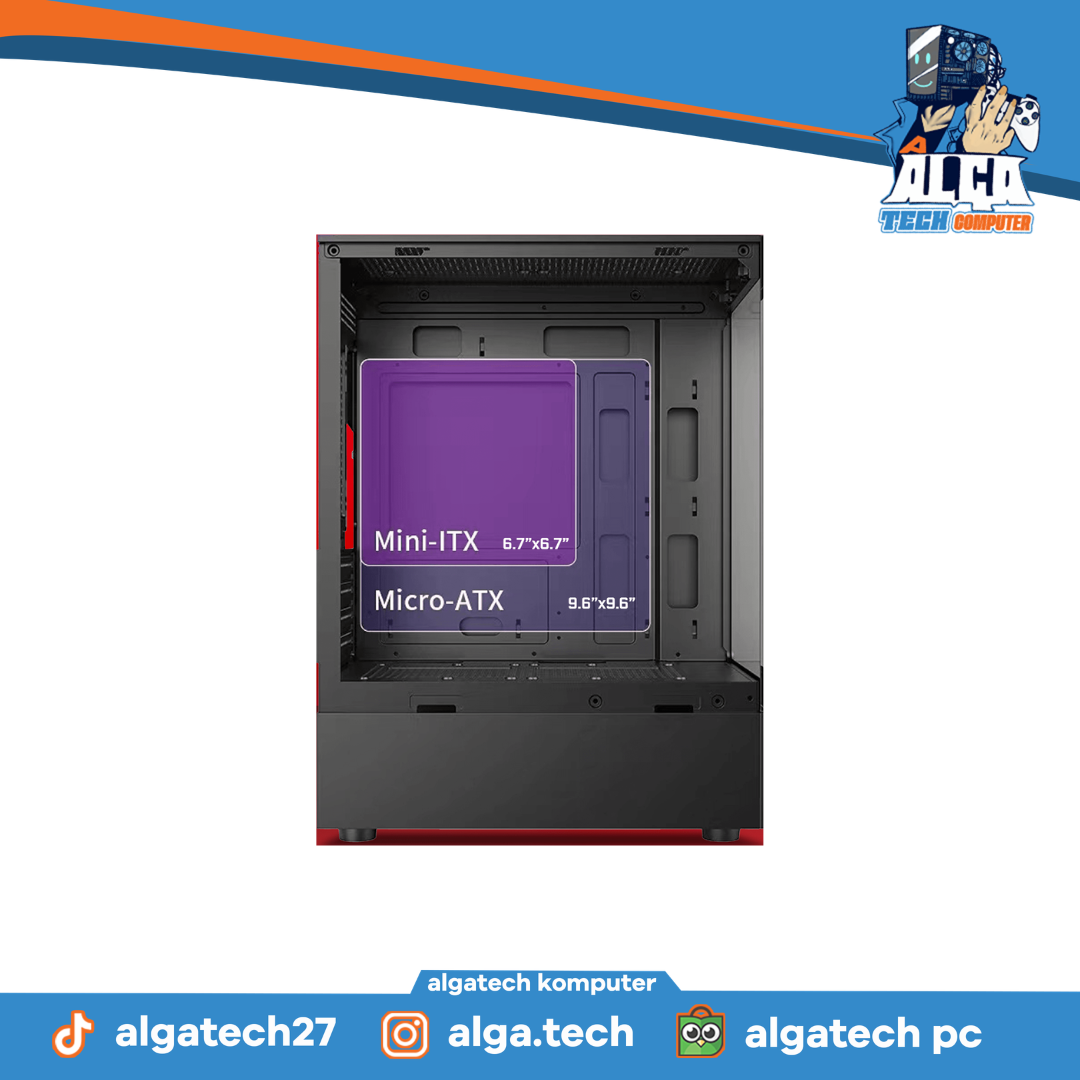

M/B Form Factor
Micro-ATX (M-ATX) / Mini-ITX
Drive bays
1 x 3.5" HDD1 x 2.5" SSD
Max CPU cooler height
Up to 165 mm
Max VGA card length
Up to 280 mm (Limits choices to single or shorter dual-fan graphics cards)
Cooling System
Includes 3 x 120mm Auto RGB static fans pre-mounted out of the box from most regional retail vendors. (Supports up to 5 x 120mm fans total for efficient targeted internals):Top: 2 x 120 mm fans.Bottom (PSU Shroud): 2 x 120 mm fans.Rear: 1 x 120 mm fan (Pre-installed). Liquid Cooling Radiator Support: Due to the shallow 290mm chassis length, standard multi-fan AIO configurations are highly restricted. It is recommended to use 120mm rear radiators or low-to-mid profile CPU air coolers up to 165mm
Material of Chassis
0.4mm SPCC Steel Body + Tempered Glass Front Panel + Tempered Glass Left Panel
I/O panel
1 x USB 3.0, 2 x USB 2.0, HD Audio Jack
Product Size
290 × 190 × 380 mm
Packing Size
(LxWxH): ~340 x 240 x 435 mm
NW
~3.10 kg (Extremely light footprint built on a compact 0.4mm SPCC steel structure combined with dual glass panes)
GW
~3.95 kg (Total estimated weight when packed inside the retail carton with protective foam inserts)
